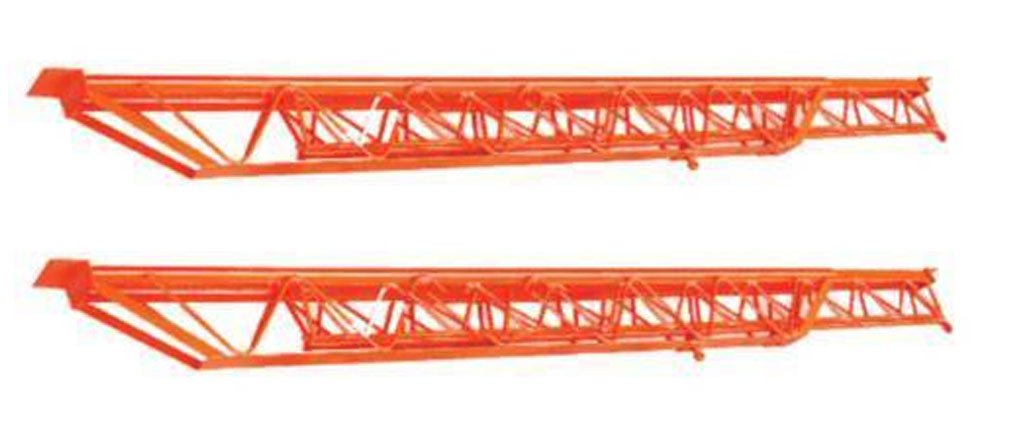

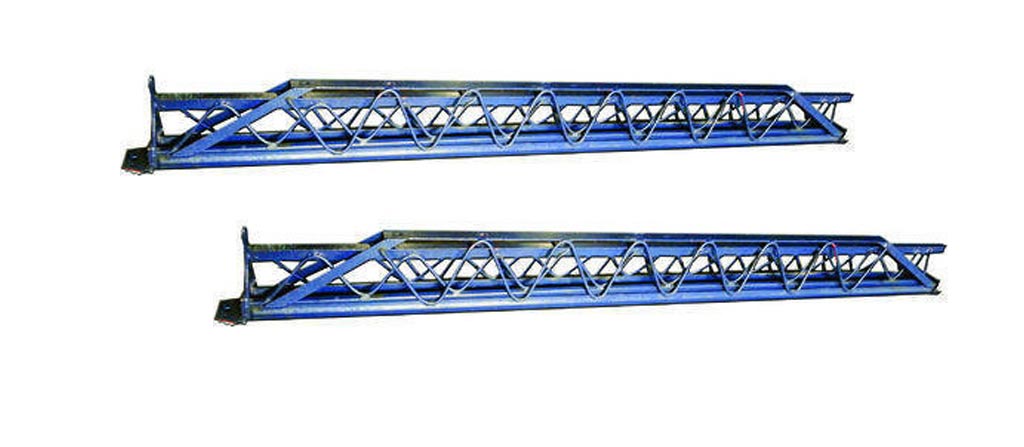

Adjustable Beam Span
Adjustable Beam Spans are widely used as self supporting runners in the shuttering system under the Floorform Panels / Shuttering plates.
WhatsAppSpecifications
- Main body of the Outer & Inner members are made up of 14/12 Gauge M.S. Sheet.
- Bottom of the Outer member is made up of 50x6 to M.S. Plate.
- Bottom of the Inner member is produced using 40 x 40 x 6 mm 'T Angle.
- Lattice is made of 10mm dia. M.S Round Bar.
- Bearing angle are of 75x75x8 mm size.
Sizes
| Sizes | Min | Max | Self Weight in KG. |
| ESO + ESI | 1750 | 2600 | 26.00 |
| SO + SI | 2400 | 3900 | 41.00 |
| SO + LI | 3050 | 4650 | 46.00 |
| LO + LI | 3150 | 5200 | 52.00 |
| 2.0 x 2.0 | 2010 | 3250 | 35.50 |
| 2.0 x 2.5 | 2510 | 3850 | 40.00 |
| 2.5 x 2.5 | 2510 | 4250 | 44.00 |
| Note: Weights indicated above are subject to tolerance of +/- 3.0 %. | |||
