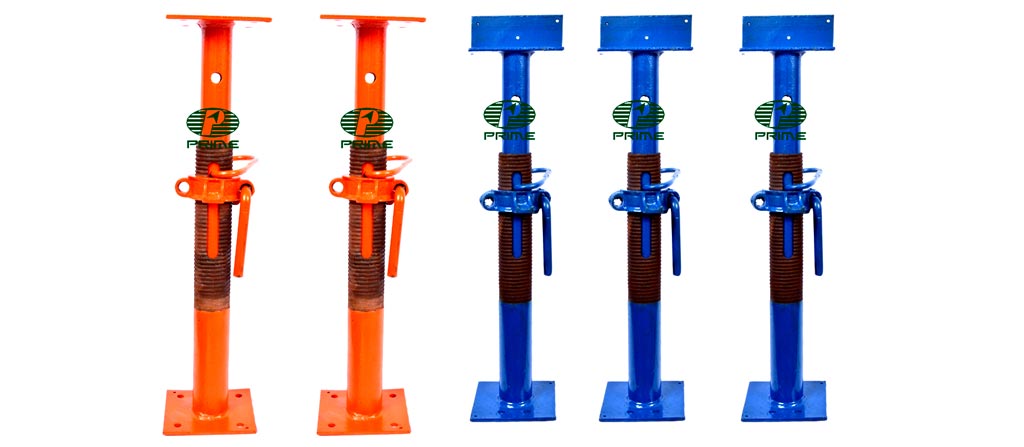

Telescopic Steel Props
Telescopic Steel Props can be used on all types of building construction or for any type of use where an adjustable vertical load bearing member is required. They are most ideal and economical supporting device for all kinds of formwork to Slabs, Beams, Walls and Columns.
WhatsAppLength of members / Height adjustment
| Size | Outer in Mtrs. | Inner in Mtrs. | Closed in Mtrs. | Extended in Mtrs. | Self Weight in Mtrs. |
| PSP1 | 1.00 | 1.00 | 1.10 | 1.75 | 10.40 |
| PSP2 | 1.50 | 1.50 | 1.50 | 2.75 | 14.20 |
| PSP3 | 1.50 | 2.00 | 2.00 | 3.25 | 15.80 |
| PSP4 | 2.00 | 2.00 | 2.00 | 3.75 | 18.00 |
| PSP4+ | 2.00 | 2.50 | 2.50 | 4.25 | 19.60 |
| PSP5 | 2.00 | 3.00 | 3.00 | 4.65 | 21.25 |
| PSP5 | 2.50 | 2.50 | 2.50 | 4.65 | 21.80 |
| PSP6 | 2.50 | 3.00 | 3.00 | 5.10 | 23.40 |
| PSP6+ | 3.00 | 3.00 | 3.00 | 5.60 | 25.60 |
| Note: Weights indicated above are subject to tolerance +/- 3.0 %. | |||||
Specifications
- Outer rnember made of 50NB (60.3mm OD) Medium class Pipe,
- Inner member made of 40NB (48.3mm OD) Medium class Pipe,
- Top and Bottom Plate are made of 150x150x6 mm M.S. Plate,
- Heavy Duty Malleable Cast-Iron Prop Nut gives fine adjustment for leveling,
- 'G' Pin made of 'High-Tensile' Steel provided for coarse adjustment.
Additional Features
- Our Roll-Threaded Props ensure no loss of material by which life and load bearing capacity of the prop is effectively enhanced.

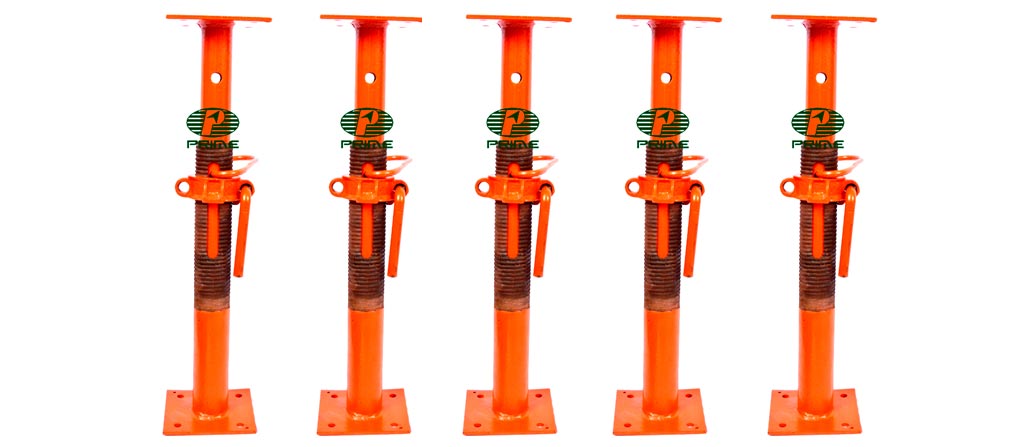

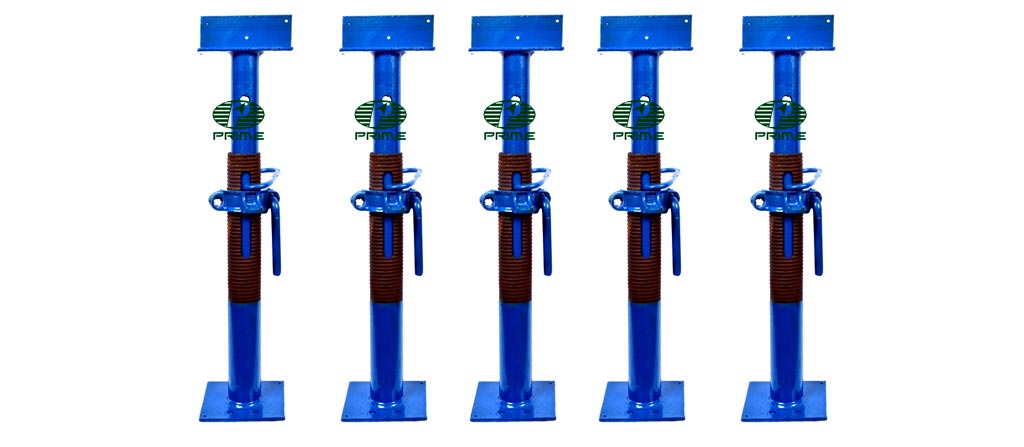

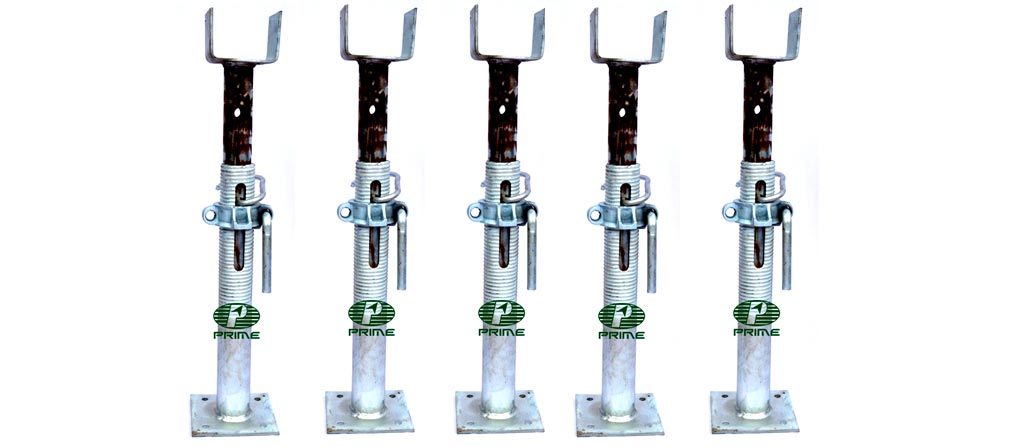

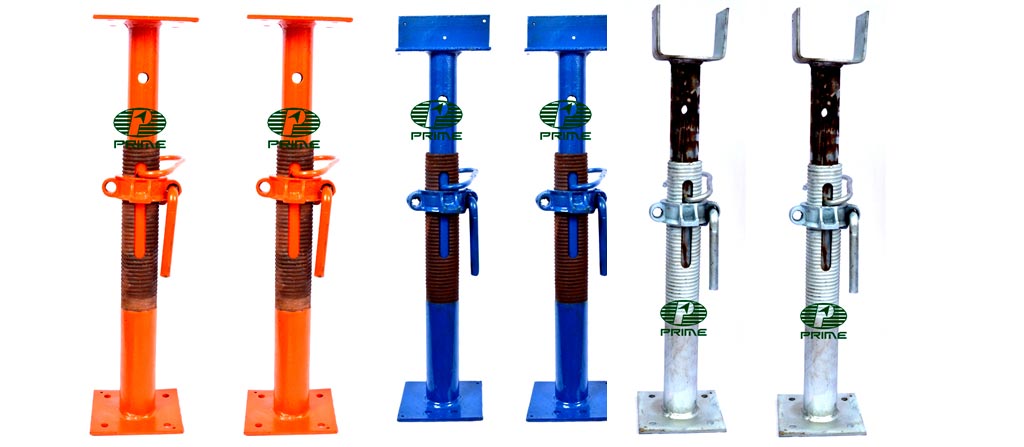

- As per customer's needs, Props are available with various heads like Beam Head, 'U' Head, Angle Head, Regular Flat Head and Tilt-Up Head.
- We also make available Dip Painted' Props using Synthetic Enamel Paints.
Safety Instructions
- Props should always be plumb and loaded concentrically.
- Safe working Loads allow 1.5° out of plumb loaded concentrically.
- Props must be braced in both directions by tubes and Double couplers when extended beyond 3.75 Mtrs.
- Lacing to be done at 1/3'd the height of the extended inner section and to be in both direction.
- While Double staging, lower Prop shall be braced at two levels whereas upper Prop, at one level. Alithese three bracings have to be in both directions.
